Round surface-mounted downlight. For escape route illumination. Housing: plastic (polycarbonate). Cover: polycarbonate. Plastic lenses for area lighting and escape route illumination included in scope of delivery. Suitable for Ceiling mounting. MULTIDIGIT AIR wireless monitoring system with automatic self-test and feedback via Bluetooth® via Android / iOS app. No bus line required. Easy configuration and commissioning as well as monitoring via app. Up to 100 self-contained emergency luminaires can be wirelessly networked and monitored. Maximum security thanks to push notification and gateway functionality. The app generates the log book quickly and automatically in PDF format, which can be archived locally or in the cloud.
Technical Specifications
| Typ of emergency lighting | Self-contained system |
|---|---|
| Monitoring | MultiDigit air |
| Battery | LiFePO4 |
| Duration | 3 h , 8 h |
| Operating mode | non-maintained power mode |

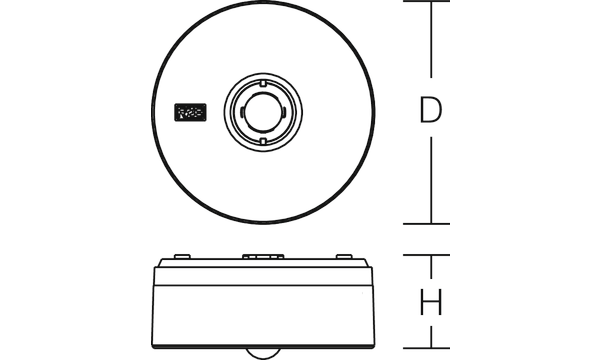

| Diameter D | 110 mm |
| Height H | 46 mm |
| Weight | 0.29 kg |
| Light source | LED |
| Colour temperature | 4000 K |
| Rated luminous flux, emergency operation | 3 h: 240 lm | 8 h: 120 lm |
| Rated life | 70000 h |
| Colour rendering index (CRI) | 70 |
| Photobiological safety according to EN 62471 | Risk group 2 |
| Driver | Electronic ballast in emergency mode only |
| Control | on/off |
| Voltage | 220 - 240 V / 50 Hz, 60 Hz |
| Luminaires on B10A fuse | 30 |
| Luminaires on B16A fuse | 40 |
| Luminaires on C10A fuse | 30 |
| Luminaires on C16A fuse | 40 |
| Type of protection | IP 20 |
| Protection class | II |
| Filament test | 850 °C |
| Impact resistance | IK06 |
| Ambient temperature for non-maintained power mode | 0 °C ... + 25 °C |
| Conformity mark | CE |
