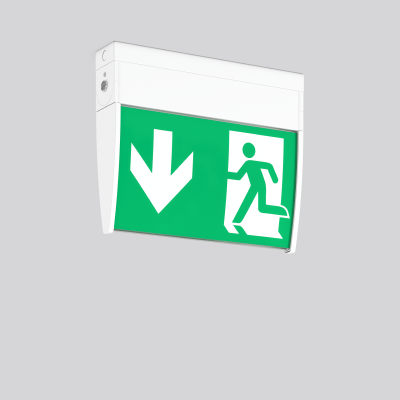

Luminaire for escape route identification. Housing: extruded aluminium profile, powder-coated. 4 legends and 1 white lay in plastic sheet included. Universal mounting kit for ceiling and wall surface mounting. Driver integrated. Suitable for connection to central battery systems.
Technical Specifications
| Typ of emergency lighting | Central battery system |
|---|---|
| Monitoring | Power circuit |
| Battery | without |
| Operating mode | maintained power mode |
| Viewing Distance | 24 m |
| Length L | 247 mm |
| Width B | 45 mm |
| Height H | 200 mm |
| Weight | 1 kg |
| Light source | LED |
| Colour temperature | 4000 K |
| System power, mains operation | 1,8 W |
| System power, emergency operation | 1,8 W |
| Rated life | 50000 h |
| Photobiological safety according to EN 62471 | Risk group 1 |
| Driver | Not necessary |
| Control | on/off |
| Voltage | 220 - 240 V / 50 Hz, 60 Hz |
| Luminaires on B10A fuse | 17 |
| Luminaires on B16A fuse | 27 |
| Luminaires on C10A fuse | 28 |
| Luminaires on C16A fuse | 45 |
| Inrush current / Inrush current duration | 27 A / 250 µs |
| CIE Flux Code / CEN Flux Code | 27 50 75 61 100 |
| Type of protection | IP 30 |
| Protection class | I |
| Filament test | 650 °C |
| Impact resistance | IK03 |
| Ambient temperature for maintained power | 0 °C ... + 25 °C |
| Ambient temperature for non-maintained power mode | 5 °C ... + 40 °C |
| Conformity mark | CE |
