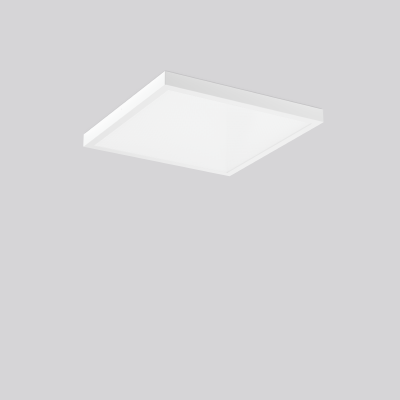

Highly economical surface mounted luminaire with progressive LED technology. Luminaire frame: aluminium, powder-coated. Mounting frame: sheet steel, powder-coated. Diffuser plastic microprismatic. Lightguide and diffuser made of non-yellowing plastic (PMMA). Lateral light emission (RZB SIDELITE® technology) for homogeneous light distribution. Driver integrated. MultiLumen: 4 steps adjustable luminous flux. Factory setting is the lowest offered step. Perfect for office areas (RUG ≤ 19) and environments with computer screens in accordance with EN 12464-1. Qualified for use in the food and drink industry.
Technical Specifications
| Length L | 602 mm |
|---|---|
| Width B | 602 mm |
| Height H | 47 mm |
| Weight | 5.47 kg |
| Light source | LED |
| Colour temperature | 3000 K |
| Rated luminous flux | 3550 lm | 4050 lm | 4400 lm | 4800 lm |
| System power | 26 W | 30 W | 33 W | 37 W |
| System efficiency | 130 lm/W | 133 lm/W | 135 lm/W | 137 lm/W |
| Glare evaluation RUG (4H 8H) | 18,2 | 18,6 | 18,9 | 19,2 |
| Beam angle | 90°/87° |
| Rated life | 50000 h (L80/B10) |
| Colour rendering index (CRI) | 80 |
| Colour tolerance (McAdam) | 3 SDCM |
| Photobiological safety according to EN 62471 | Risk group 0 |
| Driver | Converter |
| Control | on/off |
| Voltage | 220 - 240 V / 50 Hz, 60 Hz |
| Luminaires on B10A fuse | 26 |
| Luminaires on B16A fuse | 42 |
| Luminaires on C10A fuse | 44 |
| Luminaires on C16A fuse | 70 |
| Inrush current / Inrush current duration | 24 A / 150 µs |
| CIE Flux Code / CEN Flux Code | 63 88 97 100 100 |
| Type of protection | IP 40 |
| Protection class | II |
| Filament test | 650 °C |
| Impact resistance | IK03 |
| Ambient temperature | -10 °C bis + 30 °C |
| Conformity mark | CE |
