Multifunctional surface-mounted spotlight for area lighting. Very flat design. Housing made of sheet steel, powder-coated. Rotation range: 356°. Swivel range: 90°. Consistent alignment possible with visible tilt scale. High-efficiency LED units with optimum light control thanks to clear plastic (PC) lens optics. Special microstructures reduce the yellow corona (caused by chromatic aberration) to an absolute minimum. Symmetrical light distribution. Best colour rendering with CRI ≥90 for fresh products and coloured textiles. With multi adaptor for 3-circuit tracks 230 V. Suitable for Track on ceiling. MultiLumen: Luminous flux adjustable in 3 steps. Factory setting is the highest luminous flux. Environmentally friendly and resource-saving due to replaceable and recyclable components. Very good glare control, ideal for till areas.
Technical Specifications

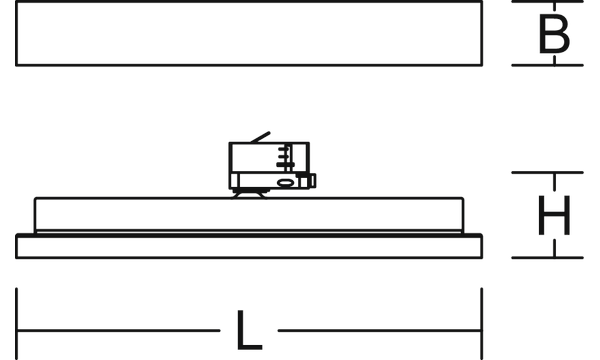

| Length L | 569 mm |
|---|---|
| Width B | 57 mm |
| Height H | 77 mm |
| Weight | 1.45 kg |
| Light source | LED |
| Colour temperature | 2700 K |
| Rated luminous flux | 1950 lm | 2550 lm | 3350 lm |
| System power | 18 W | 24 W | 33 W |
| System efficiency | 102 lm/W | 106 lm/W | 108 lm/W |
| Glare evaluation RUG (4H 8H) | 16,3 | 17,3 | 18,2 |
| Beam angle | 30° |
| Rated life | 50000 h (L80/B10) |
| Colour rendering index (CRI) | 90 |
| Colour tolerance (McAdam) | 3 SDCM |
| Photobiological safety according to EN 62471 | Risk group 1 |
| Driver | Converter |
| Control | on/off |
| Voltage | 220 - 240 V / 50 Hz, 60 Hz |
| Luminaires on B10A fuse | 15 |
| Luminaires on B16A fuse | 24 |
| Luminaires on C10A fuse | 24 |
| Luminaires on C16A fuse | 40 |
| Inrush current / Inrush current duration | 20 A / 270 µs |
| CIE Flux Code / CEN Flux Code | 88 96 99 100 100 |
| Type of protection | IP 20 |
| Protection class | I |
| Filament test | 850 °C |
| Impact resistance | IK04 |
| Ambient temperature | 5 °C bis + 25 °C |
| Conformity mark | CE |
