Pendant luminaire in timelessly classic sphere design. Base: metal, chrome. Canopy: metal, chrome-plated. Diffuser: shockproof plastic (polyethylene), opal, satin finish. Shadow-free, homogeneous and soft illumination. Incl. mounting plate with connecting terminal and mounting material for pendant tube. Pendant tube must be ordered separately!
Technical Specifications

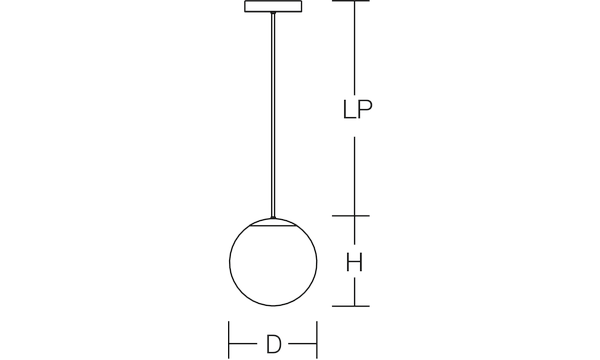

| Diameter D | 630 mm |
|---|---|
| Height H | 630 mm |
| Weight | 10.3 kg |
| Light source | LED |
| Colour temperature | 3000 K |
| Rated luminous flux | 9350 lm |
| System power | 79 W |
| System efficiency | 118 lm/W |
| Glare evaluation RUG (4H 8H) | 18,5 |
| Beam angle |
down 180° up 180° |
| Rated life | 50000 h (L80/B10) |
| Colour rendering index (CRI) | 90 |
| Colour tolerance (McAdam) | 2 SDCM |
| Photobiological safety according to EN 62471 | Risk group 1 |
| Driver | Converter, dimmable |
| Control | DALI |
| Voltage | 220 - 240 V / 50 Hz, 60 Hz |
| Luminaires on B10A fuse | 4 |
| Luminaires on B16A fuse | 7 |
| Luminaires on C10A fuse | 7 |
| Luminaires on C16A fuse | 12 |
| Inrush current / Inrush current duration | 40 A / 400 µs |
| CIE Flux Code / CEN Flux Code | 25 50 75 54 100 |
| Type of protection | IP 40 |
| Protection class | I |
| Filament test | 750 °C |
| Impact resistance | IK10 |
| Ambient temperature | 5 °C bis + 35 °C |
| Conformity mark | CE , EAC |
