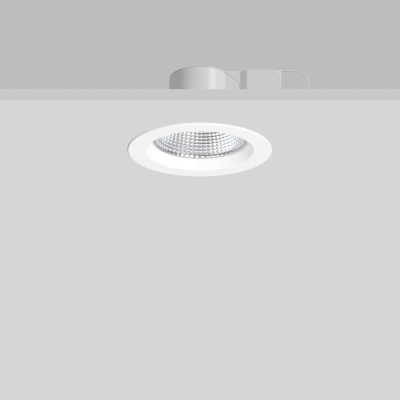

Round recessed downlight. Housing made of UV-resistant polycarbonate. Bezel ring: die-cast aluminium, powder-coated. Aluminium faceted reflector, highly polished anodised finish for brilliant illumination. Satin finish LED diffuser to reduce direct glare. MultiColour: Colour temperature adjustable via switching element. Choice of 3000 K or 4000 K. Factory setting is 4000 K. Installation without tools thanks to spring fastening system. Converter integrated in the luminaire housing. Suitable for through-wiring.
Technical Specifications
| Diameter D | 130 mm |
|---|---|
| Height H | 2 mm |
| Cut-out diameter DA | 105 mm |
| Luminaire: recess height HEL | 71 mm |
| Ceiling thickness S | 1-25 mm |
| Installation space length LE | 265 mm |
| Installation space width BE | 265 mm |
| Installation space height HE | 100 mm |
| Weight | 194 g |
| Light source | LED |
| Colour temperature | 3000 K | 4000 K |
| Rated luminous flux |
3000 K: 700 lm 4000 K: 750 lm |
| System power |
3000 K: 6.5 W 4000 K: 6.5 W |
| System efficiency |
3000 K: 108 lm/W 4000 K: 115 lm/W |
| Glare evaluation RUG (4H 8H) |
3000 K: 22,7 4000 K: 23,1 |
| Beam angle | 94° | 91° |
| Rated life | 50000 h (L70/B50) |
| Colour rendering index (CRI) | 80 |
| Colour tolerance (McAdam) | 4 SDCM |
| Photobiological safety according to EN 62471 | Risk group 0 |
| Driver | Converter |
| Control | on/off |
| Voltage | 220 - 240 V / 50 Hz, 60 Hz |
| Luminaires on B10A fuse | 102 |
| Luminaires on B16A fuse | 162 |
| Luminaires on C10A fuse | 168 |
| Luminaires on C16A fuse | 275 |
| Inrush current / Inrush current duration | 5.5 A / 3 µs |
| CIE Flux Code / CEN Flux Code | 66 95 99 100 100 |
| Type of protection |
IP 44 on room side IP 20 |
| Protection class | II |
| Filament test | 750°C - 30 seconds |
| Impact resistance | IK05 |
| Ambient temperature | -30 °C bis + 40 °C |
| Safety marks | Do not cover the recessed luminaire! |
| Conformity mark | CE, EAC |
