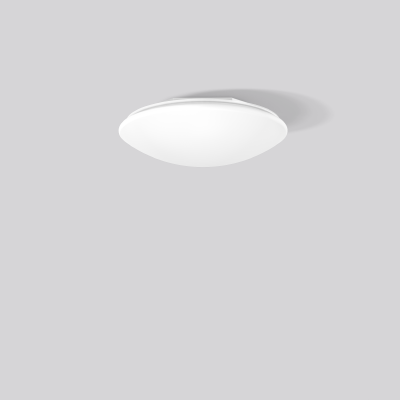

Decorative round surface-mounted luminaire. For escape route illumination. Base: metal, powder-coated. Diffuser made of non-yellowing plastic (PMMA), opal. Diffuser fastening: patented push system. Suitable for Ceiling mounting, Wall (surface). Electronic ballast included. Self-contained system with automatic self-test. With integrated HF movement sensor. Functional parameters of the motion detector (ceiling mounting up to 4.0 m or wall mounting up to 2.7 m): HF detector 5.8 GHz ISM frequency band. Sensitivity/Range: 1-8 m in diameter, adjustable from 20-100%. Time control between 10 seconds and 30 minutes, adjustable. Coverage: 120°. Can be used as master luminaire up to 800 W (ohmic load), 500 W (fluorescent lamp, LED) / 400 A, 200 µs. Suitable for outdoor use to a limited extent only, as it is sensitive to all movements.
Technical Specifications
| Typ of emergency lighting | Self-contained system |
|---|---|
| Monitoring | Autotest |
| Battery | NiMh |
| Duration | 3 h |
| Operating mode | Combined NL readiness |
| Diameter D | 360 mm |
| Height H | 116 mm |
| Weight | 1.93 kg |
| Light source | LED |
| Colour temperature | 3000 K |
| Rated luminous flux, mains operation | 1700 lm |
| System power, mains operation | 15 W |
| Rated luminous flux, emergency operation | 190 lm |
| System efficiency | 113 lm/W |
| Glare evaluation RUG (4H 8H) | 20,1 |
| Beam angle |
down 116° up 180° |
| Rated life | 50000 h |
| Colour rendering index (CRI) | 80 |
| Photobiological safety according to EN 62471 | Risk group 0 |
| Driver | Converter |
| Control | on/off |
| Voltage | 230 V / 50 Hz |
| Luminaires on B10A fuse | 31 |
| Luminaires on B16A fuse | 50 |
| Luminaires on C10A fuse | 52 |
| Luminaires on C16A fuse | 85 |
| Inrush current / Inrush current duration | 5 A / 50 µs |
| CIE Flux Code / CEN Flux Code | 43 72 90 89 100 |
| Type of protection | IP 40 |
| Protection class | I |
| Filament test | 650°C - 30 seconds |
| Impact resistance | IK03 |
| Ambient temperature for maintained power | 5 °C ... + 25 °C |
| Ambient temperature for non-maintained power mode | 5 °C ... + 40 °C |
| Conformity mark | CE , EAC |
