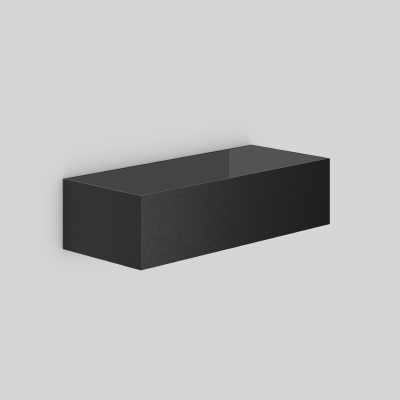

Architectural wall luminaire for the illumination of areas close to buildings. Housing made of corrosion-resistant die-cast aluminium, seawater resistant powder-coated. With membrane valve as a standard to avoid condensed water. Cover for light emission, clear single-pane toughened glass, edge printed. Upper cover, clear single-pane toughened glass, black printed. Replaceable LED spot modules according to ZHAGA standards. Asymmetrical single-sided narrow light distribution for area lighting (e.g. squares, parking lots) Very easy installation thanks to plug & play connection. Base fixing slots outside of gasketed area, drill hole deviations can be compensated. Luminaire can be mounted in any focal position. DALI control gear integrated. Suitable for through-wiring.
Technical Specifications

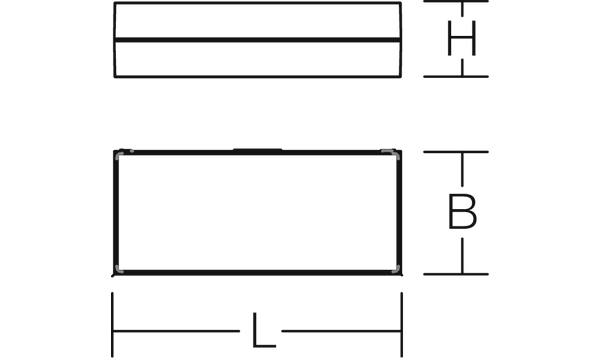

| Length L | 303 mm |
|---|---|
| Width B | 130 mm |
| Height H | 79 mm |
| Weight | 2.25 kg |
| Light source | LED |
| Colour temperature | 4000 K |
| Rated luminous flux | 4650 lm |
| System power | 32 W |
| System efficiency | 145 lm/W |
| Glare evaluation RUG (4H 8H) | 40,3 |
| Beam angle | 71°/68°/0°/68° |
| Rated life | 100000 h (L90/B50) |
| Colour rendering index (CRI) | 70 |
| Colour tolerance (McAdam) | 5 SDCM |
| Photobiological safety according to EN 62471 | Risk group 1 |
| Driver | Converter, dimmable |
| Control | DALI |
| Voltage | 220 - 240 V / 50 Hz, 60 Hz |
| Luminaires on B10A fuse | 21 |
| Luminaires on B16A fuse | 34 |
| Luminaires on C10A fuse | 35 |
| Luminaires on C16A fuse | 57 |
| Inrush current / Inrush current duration | 18 A / 250 µs |
| CIE Flux Code / CEN Flux Code | 30 67 96 100 100 |
| Type of protection | IP 65 |
| Protection class | I |
| Filament test | 650 °C |
| Impact resistance | IK04 |
| Ambient temperature | -20 °C bis + 45 °C |
| Conformity mark | CE , EAC |
