light control +3
982757.002
Light management, white

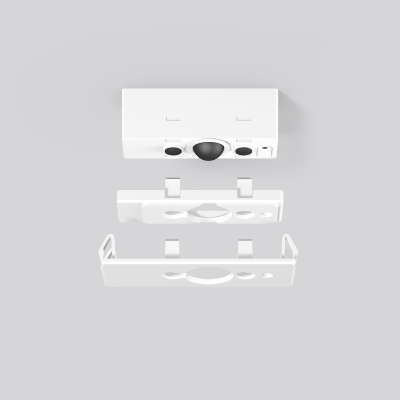

DALI-2 certified passive infrared sensor (PIR) to detect movement and brightness. Installation height: 2-5 m. Presence detection range adjustable via integrated shutters between 40° and 90°. Light sensor range: 0-800 lx (measured at the sensor). Direct connection to DALI bus. Power is supplied from the DALI line (no separate power supply needed). Function display with two-colour LED. Ceiling installation or ceiling mounting with accessories. Modular design: Please order recessed or surface-mounted housing separately. Housing of non-flammable, halogen-free plastic (polycarbonate).
Technical Specifications
| Functions | Movement / presence sensor, Daylight sensor |
|---|---|
| Interface | |

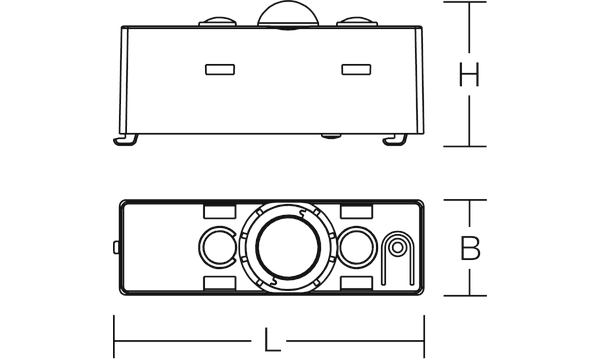

| Length L | 48 mm |
| Width B | 15 mm |
| Height H | 20 mm |
| Weight | 10 g |
| Type of protection | IP 20 |
| Protection class | III |
| Conformity mark | CE |
