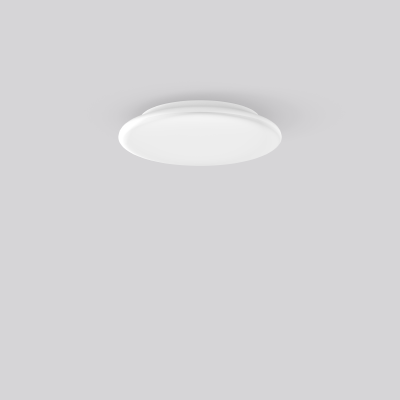

Flat decorative round LED surface-mounted luminaire. Housing: plastic (polycarbonate). Diffuser: plastic (polycarbonate), opal. Base and diffuser are sealed together. MultiColour: Colour temperature adjustable via switching element for 3000 K (factory setting), 4000 K and 5700 K. Quick mounting adapter steel sheet, white powder-coated, with bayonet fastening. Driver integrated.
Technical Specifications
| Diameter D | 250 mm |
|---|---|
| Height H | 48 mm |
| Weight | 730 g |
| Light source | LED |
| Colour temperature | 3000 K | 4000 K | 5700 K |
| Rated luminous flux |
3000 K: 1100 lm 4000 K: 1100 lm 5700 K: 1100 lm |
| System power |
3000 K: 12 W 4000 K: 12 W 5700 K: 12 W |
| System efficiency |
3000 K: 92 lm/W 4000 K: 92 lm/W 5700 K: 92 lm/W |
| Glare evaluation RUG (4H 8H) |
3000 K: 23,1 4000 K: 23,1 5700 K: 23,2 |
| Beam angle | 115° |
| Rated life | 40000 h (L70/B50) |
| Colour rendering index (CRI) | 80 |
| Colour tolerance (McAdam) | 6 SDCM |
| Photobiological safety according to EN 62471 | Risk group 1 |
| Driver | Electronic ballast |
| Control | on/off |
| Voltage | 220 - 240 V / 50 Hz |
| Luminaires on B10A fuse | 70 |
| Luminaires on B16A fuse | 112 |
| Luminaires on C10A fuse | 95 |
| Luminaires on C16A fuse | 152 |
| Inrush current / Inrush current duration | 4.28 A / 275 µs |
| CIE Flux Code / CEN Flux Code | 45 76 94 98 100 |
| Type of protection | IP 40 |
| Protection class | I |
| Filament test | 850°C - 30 seconds |
| Impact resistance | IK06 |
| Ambient temperature | -20 °C bis + 45 °C |
| Conformity mark | CE , EAC |
