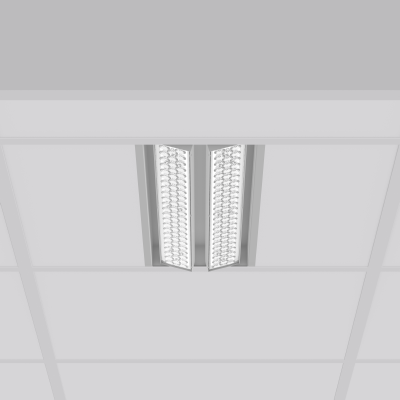

Einlege/Einbau-Flächenstrahler. Housing: aluminium, powder-coated. 2xSwivel range: 90°. High-efficiency LED units with optimum light control thanks to clear plastic (PC) lens optics. Spezielle Mikrostrukturen reduzieren Gelbsaum. Symmetrical light distribution. Best colour rendering with CRI ≥90 for fresh products and coloured textiles. Suitable for laying in grid ceiling module 600. Connected converter included in separate gearbox. Suitable for through-wiring. MultiLumen: Luminous flux adjustable in 3 steps. Accessories: Mounting frame for installation in suspended ceilings. Environmentally friendly and resource-saving due to replaceable and recyclable components.
Technical Specifications
| Length L | 597 mm |
|---|---|
| Width B | 190 mm |
| Height H | 39 mm |
| Cut-out length LA | 578 mm |
| Cut-out width BA | 174 mm |
| Installation space length LE | 675 mm |
| Installation space width BE | 390 mm |
| Installation space height HE | 100 mm |
| Weight | 2.65 kg |
| Light source | LED |
| Colour temperature | 2700 K |
| Rated luminous flux | 4050 lm | 5200 lm | 6850 lm |
| System power | 32 W | 43 W | 62 W |
| System efficiency | 110 lm/W | 121 lm/W | 127 lm/W |
| Glare evaluation RUG (4H 8H) | 17,3 | 18,1 | 19,1 |
| Beam angle | 62° |
| Rated life | 50000 h (L80/B10) |
| Colour rendering index (CRI) | 90 |
| Colour tolerance (McAdam) | 3 SDCM |
| Photobiological safety according to EN 62471 | Risk group 1 |
| Driver | Converter |
| Control | on/off |
| Voltage | 220 - 240 V / 50 Hz, 60 Hz |
| Luminaires on B10A fuse | 10 |
| Luminaires on B16A fuse | 17 |
| Luminaires on C10A fuse | 17 |
| Luminaires on C16A fuse | 28 |
| Inrush current / Inrush current duration | 9 A / 65 µs |
| CIE Flux Code / CEN Flux Code | 88 96 99 100 100 |
| Type of protection |
IP 20 on room side IP 20 |
| Protection class | I |
| Filament test | 650 °C |
| Impact resistance | IK03 |
| Ambient temperature | 5 °C bis + 25 °C |
| Safety marks | Do not cover the recessed luminaire! |
| Conformity mark | CE |
