SIDELITE ECO

312273.002.2.730

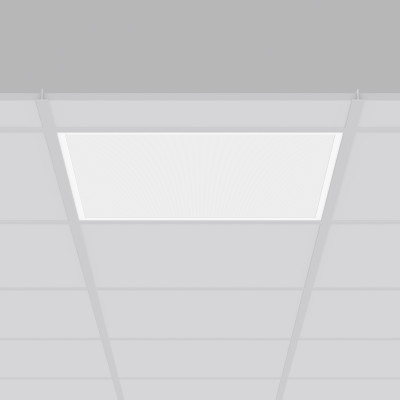

Lay-in luminaires, white

Highly economical recessed luminaire with progressive LED technology. Frame made of aluminium, powder-coated. Diffuser plastic microprismatic. Lightguide and diffuser made of non-yellowing plastic (PMMA). Lateral light emission (RZB SIDELITE® technology) for homogeneous light distribution. Tunable white versions, dynamically adjustable from 2700 K to 6500 K. External driver. External driver with simple plug-in locking system. With Casambi smart+free Bluetooth® control for wireless network and operation using Android / iOS devices, free app available for download. Luminaire can be used with accessories (to be ordered separately) as recessed or surface mounting luminaire. Perfect for office areas (RUG ≤ 19) and environments with computer screens in accordance with EN 12464-1. Ideal for use as part of the Human Centric Lighting concept in connection with RZB light management systems. Qualified for use in the food and drink industry.

Technical Specifications

Length L 595 mm
Width B 595 mm
Cut-out length LA 575 mm
Cut-out width BA 575 mm
Luminaire: recess height HEL 39 mm
Installation space length LE 600 mm
Installation space width BE 600 mm
Installation space height HE 160 mm
Weight 3.13 kg
Light source LED
Colour temperature 2700 - 6500 K
Rated luminous flux 2700...3050 lm
System power 30...32 W
System efficiency 84...102 lm/W
Beam angle 87°/87°
Rated life 50000 h (L80/B50)
Colour rendering index (CRI) 80
Colour tolerance (McAdam) 3 SDCM
Photobiological safety according to EN 62471 Risk group 1
Driver Converter, dimmable
Control smart+free (Bluetooth)
Voltage 220 - 240 V / 50 Hz
Luminaires on B10A fuse 10
Luminaires on B16A fuse 16
Luminaires on C10A fuse 16
Luminaires on C16A fuse 26
Inrush current / Inrush current duration 26.4 A / 224 µs
CIE Flux Code / CEN Flux Code 63 88 97 100 100
Type of protection IP 40 on room side
IP 20
Protection class II
Filament test 650°C - 30 seconds
Impact resistance IK03
Ambient temperature -20 °C bis + 30 °C
Safety marks Do not cover the recessed luminaire!
Conformity mark CE, EAC

Light Calculator

Room
Reflection rate 70 / 50 / 20
Calculation
Maintenance factor 0,8
Result
lx Illumination value Em
Quantity of Luminaires
lx Illumination value Em
W Total power
lm Total luminous flux
Download PDF

The Online Light Calculator's purpose is a quick calculation and the results may not be perfectly accurate.

Accessories

981941.012
Mounting frame for installation in suspended ceilings.
982187.032
Surface mounting frame
