TRIONA round
312393.004.2.730

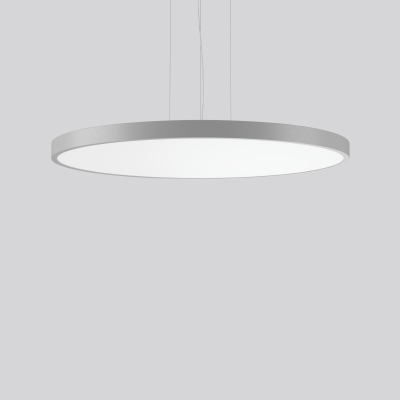

Decorative round LED pendant-mounted surface luminaire. Flat, seamless frame: aluminium extrusion profile, powder coated. Cover made of sheet steel, powder-coated. Canopy made of aluminium, powder-coated. Light emission through a diffuser: plastic, opal. Lightguide and diffuser made of non-yellowing plastic (PMMA). Lateral light emission (RZB SIDELITE® technology) for above-average homogeneous light distribution. Tunable white versions, dynamically adjustable from 2700 K to 6500 K. 3-point steel cable suspension, steplessly adjustable. Easy installation with transparent, adjustable pendant cable and canopy with magnetic fixing. Driver integrated. Ideal for use as part of the Human Centric Lighting concept in connection with RZB light management systems.
Technical Specifications
| Diameter D | 1009 mm |
|---|---|
| Height H | 52 mm |
| Suspension length LP | 500-1200 mm |
| Weight | 21.3 kg |
| Light source | LED |
| Colour temperature | 2700 - 6500 K |
| Rated luminous flux | 5450...5700 lm |
| System power | 61...63 W |
| System efficiency | 87...93 lm/W |
| Beam angle | 104° |
| Rated life | 50000 h (L80/B50) |
| Colour rendering index (CRI) | 80 |
| Colour tolerance (McAdam) | 3 SDCM |
| Photobiological safety according to EN 62471 | Risk group 1 |
| Driver | Converter, dimmable |
| Control | smart+free (Bluetooth) |
| Voltage | 220 - 240 V / 50 Hz |
| Luminaires on B10A fuse | 6 |
| Luminaires on B16A fuse | 10 |
| Luminaires on C10A fuse | 10 |
| Luminaires on C16A fuse | 16 |
| Inrush current / Inrush current duration | 39 A / 286 µs |
| CIE Flux Code / CEN Flux Code | 50 80 96 100 100 |
| Type of protection | IP 20 |
| Protection class | I |
| Filament test | 650°C - 30 seconds |
| Impact resistance | IK03 |
| Ambient temperature | 25 °C |
| Conformity mark | CE , EAC |
