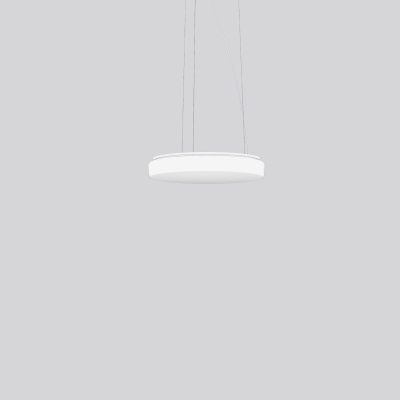

Decorative round LED pendant luminaire. Base and canopy: metal, powder-coated, white. Canopy Ø 205 mm, h 35 mm. Diffuser made of non-yellowing plastic (PMMA), opal. Diffuser fastening: patented push system. Homogeneous and smooth light distribution. Suitable for pendant. 3-point steel cable suspension, steplessly adjustable. Special lengths available on request.
Technical Specifications
| Diameter D | 360 mm |
|---|---|
| Height H | 61 mm |
| Suspension length LP | 200-1300 mm |
| Weight | 3.68 kg |
| Light source | LED |
| Colour temperature | 4000 K |
| Rated luminous flux | 2000 lm |
| System power | 19 W |
| System efficiency | 105 lm/W |
| Glare evaluation RUG (4H 8H) | 20,6 |
| Beam angle |
down 122° up 180° |
| Rated life | 50000 h (L80/B10) |
| Colour rendering index (CRI) | 83 |
| Colour tolerance (McAdam) | 3 SDCM |
| Photobiological safety according to EN 62471 | Risk group 1 |
| Driver | Converter, dimmable |
| Control | Phase cut-off/cut-on |
| Voltage | 220 - 240 V / 50 - 60 Hz |
| Luminaires on B10A fuse | 84 |
| Luminaires on B16A fuse | 135 |
| Luminaires on C10A fuse | 84 |
| Luminaires on C16A fuse | 135 |
| Inrush current / Inrush current duration | 0.22 A / 200 µs |
| CIE Flux Code / CEN Flux Code | 42 73 92 84 100 |
| Type of protection | IP 40 |
| Protection class | I |
| Filament test | 650°C - 30 seconds |
| Impact resistance | IK03 |
| Ambient temperature | -20 °C bis + 35 °C |
| Conformity mark | CE |
Downloads
Light Calculator
The Online Light Calculator's purpose is a quick calculation and the results may not be perfectly accurate.
Spareparts
08-312085.002
Replacement diffuser
