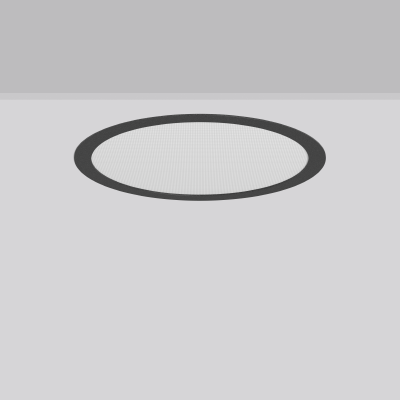

Flexible round recessed multifunction downlight. Housing made of sheet steel, powder-coated. Luminaire frame: aluminium, powder-coated. Diffuser made of non-yellowing plastic (PMMA) microprismatic. LED backlight technology for homogeneous illumination of the entire light-emitting surface. MultiColour: Colour temperature individually adjustable either 3000 K or 4000 K via switching element. Factory setting is 4000 K. MultiLumen: 4 steps adjustable luminous flux. Factory setting is step 2. Suitable for Recessed ceiling mounting. Ceiling installation with spring system. Can be directly covered with thermal insulation material (applies only to the lower lumen levels). Including separate LED converter with connecting cable 250 mm. Suitable for through wiring as standard. Surface mounted housing as accessory for all sizes.
Technical Specifications
| Diameter D | 390 mm |
|---|---|
| Height H | 2 mm |
| Cut-out diameter DA | 377 mm |
| Luminaire: recess height HEL | 40 mm |
| Ceiling thickness S | 1-20 mm |
| Installation space length LE | 550 mm |
| Installation space width BE | 490 mm |
| Installation space height HE | 60 mm |
| Weight | 1.28 kg |
| Light source | LED |
| Colour temperature | 3000 K | 4000 K |
| Rated luminous flux | 1350 lm | 1800 lm | 2200 lm | 2550 lm |
| System power | 12 W | 15 W | 19 W | 22 W |
| System efficiency | 113 lm/W | 116 lm/W | 116 lm/W | 120 lm/W |
| Glare evaluation RUG (4H 8H) | 17,7 | 18,7 | 19,4 | 19,9 |
| Beam angle | 78° |
| Rated life | 50000 h (L80/B10) |
| Colour rendering index (CRI) | 80 |
| Colour tolerance (McAdam) | 3 SDCM |
| Photobiological safety according to EN 62471 | Risk group 1 |
| Driver | Converter, dimmable |
| Control | DALI |
| Voltage | 220 - 240 V / 50 Hz, 60 Hz |
| Luminaires on B10A fuse | 40 |
| Luminaires on B16A fuse | 64 |
| Luminaires on C10A fuse | 40 |
| Luminaires on C16A fuse | 64 |
| Inrush current / Inrush current duration | 5.22 A / 36 µs |
| CIE Flux Code / CEN Flux Code | 67 90 98 100 100 |
| Type of protection |
IP 54 on room side IP 20 |
| Protection class | II |
| Filament test | 650 °C |
| Impact resistance | IK03 |
| Ambient temperature | -20 °C bis + 35 °C |
| Safety marks | Do not cover the recessed luminaire! |
| Conformity mark | CE , EAC |
