LUPALO
612335.0031
Column system, anthracite metallic (DB703)
Modular design: Please order light top unit separately.

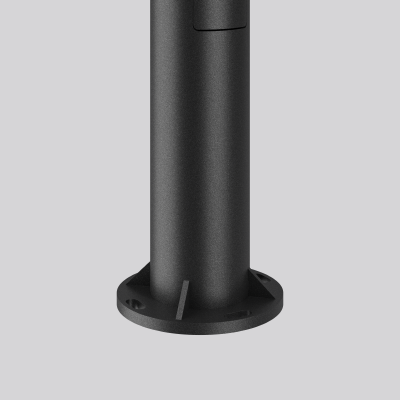

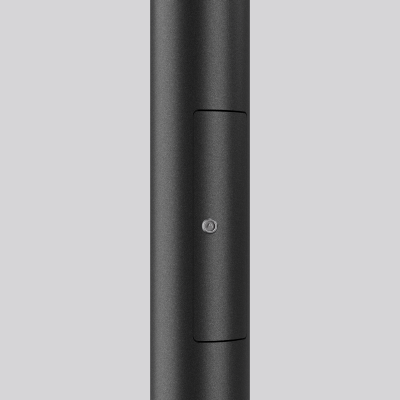

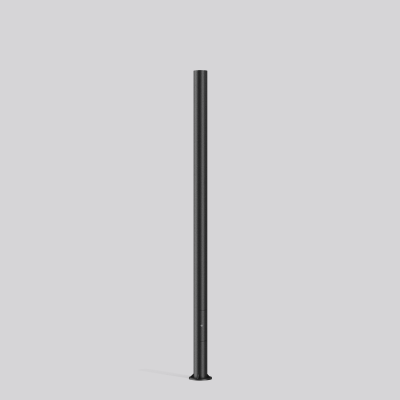

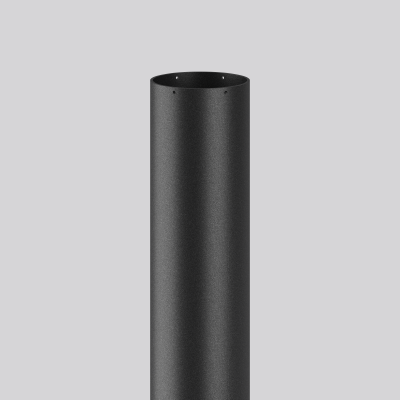

Luminaire tube with ground-plate. Height 4150 mm. Post tube of the modular LUPALO column system. Standpipe made of corrosion-resistant aluminium profile, seawater resistant powder-coated. Inspection door with triangular lock. C-rail for junction box/cable junction box. Connection box on base, max. 2 x 3 x 2.5 mm² for through wiring. Mounting plate with four screw holes, seawater resistant powder-coated. Please order fuse box separately. Modular design: Please order light top unit separately.
Technical Specifications
| Diameter D | 300 mm |
|---|---|
| Height H | 4150 mm |
| Pole-top diameter | 180 mm |
| Weight | 41.5 kg |
| Conformity mark | CE |
Downloads
Modules
612329.0031.1.76
Light top unit LUPALO, 740, 5550 lm, 55 W, DALI, symmetrical
612329.0031.76
Light top unit LUPALO, 730, 5250 lm, 55 W, DALI, symmetrical
612328.0031.1.76
Light top unit LUPALO, 740, 5450 lm, 55 W, DALI, symmetrical
612328.0031.76
Light top unit LUPALO, 730, 5150 lm, 55 W, DALI, symmetrical
612327.0031.1.76
Light top unit LUPALO, 740, 5800 lm, 55 W, DALI, symmetrical
612327.0031.76
Light top unit LUPALO, 730, 5550 lm, 55 W, DALI, symmetrical
612326.0031.1.76
Light top unit LUPALO, 740, 5350 lm, 55 W, DALI, symmetrical
612326.0031.76
Light top unit LUPALO, 730, 5050 lm, 55 W, DALI, symmetrical
612325.0031.1.76
Light top unit LUPALO, 740, 5150 lm, 55 W, DALI, symmetrical
612325.0031.76
Light top unit LUPALO, 730, 4900 lm, 55 W, DALI, symmetrical
612324.0031.1.76
Light top unit LUPALO, 740, 5850 lm, 55 W, DALI, symmetrical
612324.0031.76
Light top unit LUPALO, 730, 5550 lm, 55 W, DALI, symmetrical
Accessories
983235.009
Fuse box with surge protection
