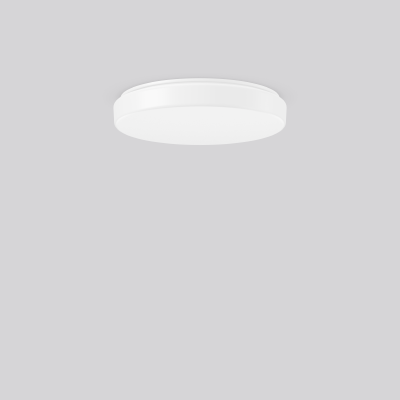

Flat decorative round LED surface-mounted luminaire. Base: metal, powder-coated. Diffuser made of plastic (polycarbonate), opal, shockproof. Diffuser fastening: patented push system. Suitable for Ceiling mounting, Wall (surface). Slave luminaire. Can only be operated in combination with corresponding master luminaire.
Technical Specifications
| Diameter D | 360 mm |
|---|---|
| Height H | 65 mm |
| Weight | 1.43 kg |
| Light source | LED |
| Colour temperature | 3000 K |
| Rated luminous flux | 2000 lm |
| System power | 20 W |
| System efficiency | 100 lm/W |
| Glare evaluation RUG (4H 8H) | 20,9 |
| Beam angle |
down 120° up 180° |
| Rated life | 50000 h (L80/B10) |
| Colour rendering index (CRI) | 80 |
| Colour tolerance (McAdam) | 3 SDCM |
| Photobiological safety according to EN 62471 | Risk group 1 |
| Driver | Not necessary |
| Control | on/off |
| Voltage | 220 - 240 V / 50 - 60 Hz |
| Luminaires on B10A fuse | 87 |
| Luminaires on B16A fuse | 139 |
| Luminaires on C10A fuse | 87 |
| Luminaires on C16A fuse | 139 |
| Inrush current / Inrush current duration | 0.1 A / 10000 µs |
| CIE Flux Code / CEN Flux Code | 43 74 93 89 100 |
| Type of protection | IP 40 |
| Protection class | I |
| Filament test | 850°C - 30 seconds |
| Impact resistance | IK10 |
| Ambient temperature | -20 °C bis + 35 °C |
| Conformity mark | CE |
Downloads
Light Calculator
The Online Light Calculator's purpose is a quick calculation and the results may not be perfectly accurate.
Spareparts
08-312085.022
Replacement diffuser
