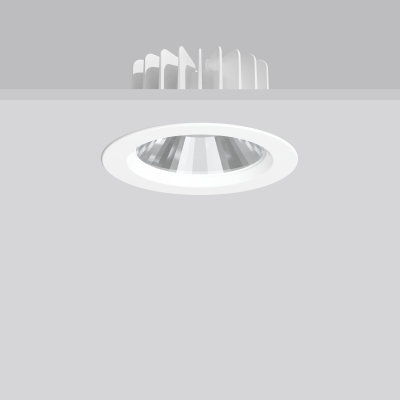

Recessed LED downlight featuring advanced technology and sophisticated design. Housing: die-cast aluminium constructed as heat sink. Bezel ring: die-cast aluminium, powder-coated. Standard Gore™ Protective Vents diaphragm valve to avoid condensation. Luminaire also maintains the high protection type inside the false ceiling (does not apply to converter, IP 20). Closed version. Cover clear single-pane toughened glass. Faceted reflector: parabolic four-segment design, frosted aluminium, with highly polished light mixing chamber. MultiLumen: Luminous flux adjustable in different steps. Best colour rendering index Ra>90. Installation without tools thanks to spring fastening system. Connected converter included in separate gearbox. With connecting cable (L 250 mm). Suitable for through wiring as standard. Ball impact proof in accordance with DIN 18032-3. Qualified for use in the food and drink industry.
Technical Specifications
| Diameter D | 140 mm |
|---|---|
| Height H | 3 mm |
| Cut-out diameter DA | 120 mm |
| Luminaire: recess height HEL | 82 mm |
| Ceiling thickness S | 1-20 mm |
| Installation space length LE | 500 mm |
| Installation space width BE | 500 mm |
| Installation space height HE | 82 mm |
| Weight | 0.79 kg |
| Light source | LED |
| Colour temperature | 3000 K |
| Rated luminous flux | 1450 lm | 1950 lm | 2300 lm | 3000 lm |
| System power | 12 W | 16 W | 19 W | 25 W |
| System efficiency | 120 lm/W | 121 lm/W | 121 lm/W | 122 lm/W |
| Glare evaluation RUG (4H 8H) | 19,3 | 20,3 | 20,9 | 21,8 |
| Beam angle | 50° |
| Rated life | 50000 h (L90/B50) |
| Colour rendering index (CRI) | 90 |
| Colour tolerance (McAdam) | 2 SDCM |
| Photobiological safety according to EN 62471 | Risk group 1 |
| Driver | Converter, dimmable |
| Control | DALI |
| Voltage | 220 - 240 V / 50 Hz, 60 Hz |
| Luminaires on B10A fuse | 28 |
| Luminaires on B16A fuse | 47 |
| Luminaires on C10A fuse | 36 |
| Luminaires on C16A fuse | 56 |
| Inrush current / Inrush current duration | 50 A / 10 µs |
| CIE Flux Code / CEN Flux Code | 94 99 100 100 100 |
| Type of protection |
IP 65 on room side IP 20 |
| Protection class | II |
| Filament test | 850 °C |
| Impact resistance | IK07 |
| Ambient temperature | 5 °C bis + 35 °C |
| Safety marks | Ball impact proof in accordance with DIN 18032-03 , Do not cover the recessed luminaire! |
| Conformity mark | CE |
