LINEDO
982678.013.1

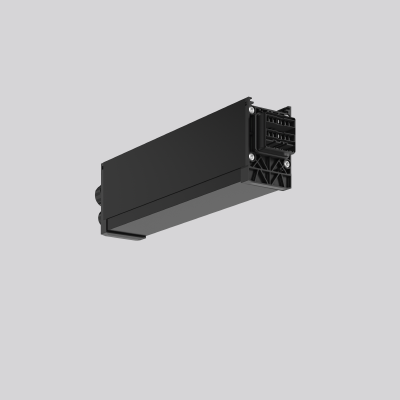

Continuous line luminaire, black
Initial power feed, 14-pole, connection plug. Housing: extruded aluminium profile, powder-coated. Cover made of plastic, surface like housing. LINEDO plug system, plastic, black. 2 cable glands (M20 and M25). Cable glands on side or on top. Easy connection for rigid or flexible wires. Especially for use with continuous line modules with high opal diffuser.
Technical Specifications
| Length L | 330 mm |
|---|---|
| Width B | 58 mm |
| Height H | 91 mm |
| Weight | 778 g |
| Voltage | 220 - 240 V / 0 Hz, 50 Hz, 60 Hz |
| Protection class | I |
| Filament test | 650 °C |
| Impact resistance | IK02 |
| Ambient temperature | 5 °C bis + 50 °C |
| Conformity mark | CE , EAC |
