Attractive wall luminaire with innovative housing design and high-quality LED optics. Housing made of corrosion-resistant die-cast aluminium, seawater resistant powder-coated. With membrane valve as a standard to avoid condensed water. Mouth-blown luminaire glass, clear, drum lens shape. Fixing on the wall outside the sealed volume, drill hole deviations can be compensated. Screwless luminaire fixing via RZB Gravolock® System.
Technical Specifications

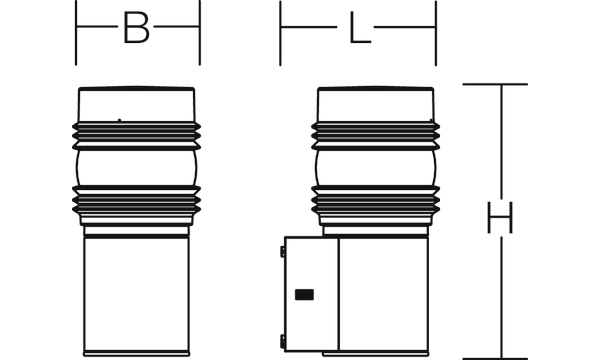

| Length L | 160 mm |
|---|---|
| Width B | 115 mm |
| Height H | 338 mm |
| Weight | 3.04 kg |
| Light source | LED |
| Colour temperature | 3000 K |
| Rated luminous flux | 500 lm |
| System power | 10 W |
| System efficiency | 50 lm/W |
| Glare evaluation UGR (4H 8H) | 19,1 |
| Beam angle |
down 180° up 180° |
| Rated life | 60000 h (L80/B50) |
| Colour rendering index (CRI) | 80 |
| Colour tolerance | 3 SDCM |
| Photobiological safety according to EN 62471 | Risk group 1 |
| Driver | Converter |
| Control | on/off |
| Voltage | 220 - 240 V / 0 Hz, 50 - 60 Hz |
| Luminaires on B10A fuse | 17 |
| Luminaires on B16A fuse | 27 |
| Luminaires on C10A fuse | 28 |
| Luminaires on C16A fuse | 45 |
| Inrush current / Inrush current duration | 27 A / 250 µs |
| CIE Flux Code / CEN Flux Code | 14 38 62 46 100 |
| Type of protection | IP 65 |
| Protection class | I |
| Filament test | 960°C - 30 seconds |
| Impact resistance | IK04 (0,50 Joule) |
| Ambient temperature | -20 °C ... + 45 °C |
| Safety marks | F-mark |
| Conformity mark | CE , EAC |
Downloads
Spareparts
982553.004
Luminaire head, silver
