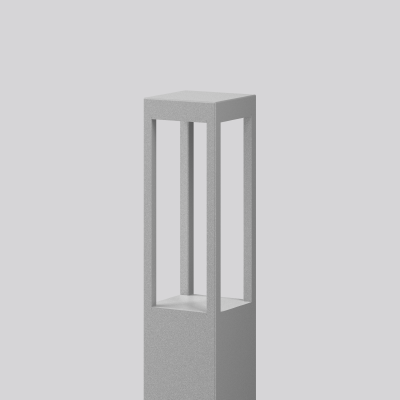

Decorative bollard with square cross section. Luminaire tube made of corrosion resistant aluminium with pressure die-cast aluminium cover, seawater resistant powder-coated. With recessed stainless steel fixing bracket. LED protection cover made of clear toughened safety glass. The robust stainless steel mounting base ensures long-term stability. Elongated holes in the base for subsequent and simple alignment of the luminaire. Connection box on base, max. 2 x 3 x 2.5 mm² for through wiring.
Technical Specifications
| Length L | 120 mm |
|---|---|
| Width B | 120 mm |
| Height H | 800 mm |
| Weight | 4.55 kg |
| Light source | LED |
| Colour temperature | 4000 K |
| Rated luminous flux | 1900 lm |
| System power | 20 W |
| System efficiency | 95 lm/W |
| Glare evaluation UGR (4H 8H) | 29,8 |
| Beam angle | 113°/113° |
| Rated life | 50000 h (L80/B10) |
| Colour rendering index (CRI) | 83 |
| Colour tolerance | 3 SDCM |
| Photobiological safety according to EN 62471 | Risk group 1 |
| Driver | Converter, dimmable |
| Control | Phase cut-off/cut-on |
| Voltage | 220 - 240 V / 50 Hz |
| Luminaires on B10A fuse | 40 |
| Luminaires on B16A fuse | 60 |
| Luminaires on C10A fuse | 65 |
| Luminaires on C16A fuse | 102 |
| Inrush current / Inrush current duration | 0.09 A / 60000 µs |
| CIE Flux Code / CEN Flux Code | 50 87 99 97 100 |
| Type of protection | IP 66 |
| Protection class | I |
| Filament test | 960 °C |
| Impact resistance | IK06 |
| Ambient temperature | -20 °C ... + 30 °C |
| Conformity mark | CE , EAC |
Downloads
Accessories
982103.010
Accessory for ground installation
