582101.004.76

Techno PRO

582101.004.76

  • 582101.004.76
  • 582101.0031.76
iF AwardDesignpreis Deutschland
Series
Techno PRO
Type of Installation
Wall (surface)
Colour
silver metallic
European Article number EAN
4051859753803

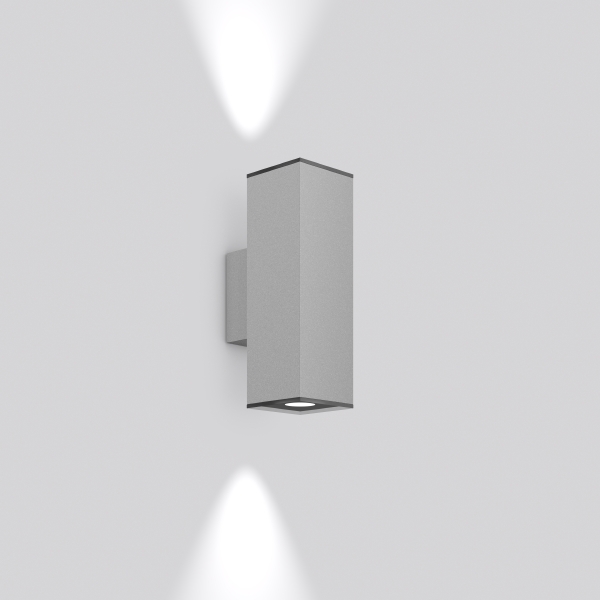

Wallscaping: elegant and innovative wall luminaire for accent lighting. Housing made of corrosion-resistant die-cast aluminium, seawater resistant powder-coated. With membrane valve as a standard to avoid condensed water. Cover made of ceramic-coated toughened glass with bayonet lock. COB LED with socket for easy replacement. Light emission: up and down. Rotationally symmetrical reflector spot, narrow beam. Fixing on the wall outside the sealed volume, drill hole deviations can be compensated. Screwless luminaire fixing via RZB Gravolock® System. Electrical plug and play featuring quick connector. Cable entry granting two cables for loop-through. Driver integrated. Dimmable DALI.. MultiLumen: 3 steps adjustable luminous flux.

Technical Specifications

Electrical:

System power
13 W
Luminaire efficacy
104 lm/W
System power 2
19 W
Luminous efficiency 2
100 lm/W
System power 3
28 W
Luminous efficiency 3
96 lm/W
Control gear
DALI
Voltage
220 - 240 V
Luminaires on B10A fuse
31
Luminaires on B16A fuse
50
Luminaires on C10A fuse
52
Luminaires on C16A fuse
85
Inrush current / Inrush current duration
5 A / 50 µs
Ripple current / Flicker
3 %
Power factor
0.95

Lighting technology:

Colour temperature
3,000 K
Rated luminous flux
1,350 lm
Glare evaluation UGR (4H 8H) 1
7.3
Beam angle Down 1
15°
Beam angle combined Up 1
15°
Colour temperature 2
3,000 K
Rated luminous flux 2
1,900 lm
Glare evaluation UGR (4H 8H) 2
8.5
Colour temperature 3
3,000 K
Beam angle Down 2
15°
Beam angle combined Up 2
15°
Rated luminous flux 3
2,700 lm
Glare evaluation UGR (4H 8H) 3
9.7
Beam angle Down 3
15°
Beam angle combined Up 3
15°

Approbations:

ULOR
49.9
CIE Flux Code / CEN Flux Code
100 100 100 50 100
Type of protection
IP 65
Protection class
I
Filament test
960°C - 30 seconds
Impact resistance
IK07 (2 Joule)
Safety marks
F-mark
Ambient temperature min.
-20 °C
Ambient temperature max.
35 °C
Conformity mark
CE
Energieeffizienzklasse 2019/2015
D
Non-maintained power mode
Umgebungstemperatur /
temperature ambiente
=> -20 °C ... + 35 °C

Lamps:

Lamp
LED
Socket
Colour temperature
3000K
Colour rendering index (CRI)
80
Colour tolerance
3
Rated life
50000 h (L80/B50)
Photobiological safety according to EN 62471
Risk group 1

Dimensions:

Length L
100 mm
Width B
154 mm
Height H
307 mm
Weight
4 kg
Drawing

Accessories

982769.003 982769.003 L 100, B 100, H 31 Blanking cover.
982769.033 982769.033 L 100, B 100, H 31 Centre: transparent with pressed glass lens Superspot.
982769.053 982769.053 L 100, B 100, H 31 Centre: transparent d 50 mm. For reflectors, Spot and Flood.
982846.004 982846.004 D 50, H 30 Reflector spot
982846.014 982846.014 D 50, H 30 Reflector flood

Spareparts

982769.053 982769.053 Diffuser L 100, B 100, H 31 Centre: transparent d 50 mm. For reflectors, Spot and Flood.
982846.004 982846.004 Reflector D 50, H 30 Reflector spot
