611988.004.1

BOCARO

611988.004.1

  • 611988.004.1
  • 611988.0031.1
Series
BOCARO
Type of Installation
free-standing
Colour
silver metallic
European Article number EAN
4051859158103

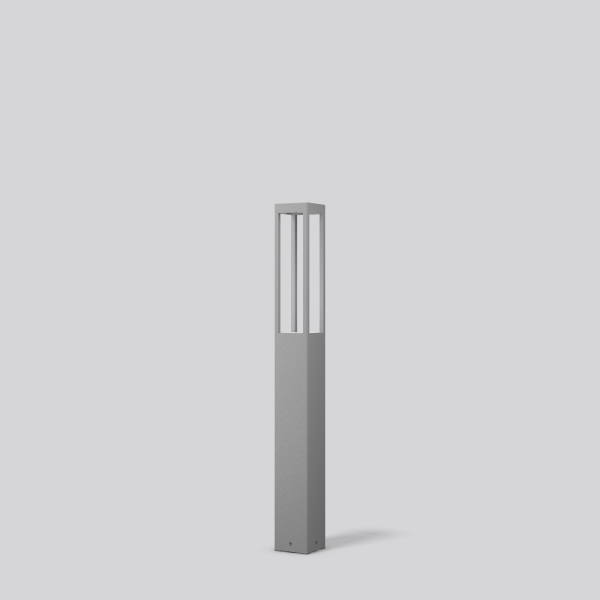

Decorative bollard with square cross section. Luminaire tube made of corrosion resistant aluminium with pressure die-cast aluminium cover, seawater resistant powder-coated. With recessed stainless steel fixing bracket. LED protection cover made of clear toughened safety glass. The robust stainless steel mounting base ensures long-term stability. Elongated holes in the base for subsequent and simple alignment of the luminaire. Connection box on base, max. 2 x 3 x 2.5 mm² for through wiring.

Technical Specifications

Electrical:

System power
20 W
Luminaire efficacy
98 lm/W
Control gear
AC Strom, dim.Ph.an-/abschnitt
Voltage
220 - 240 V / 50 Hz
Luminaires on B10A fuse
40
Luminaires on B16A fuse
60
Luminaires on C10A fuse
65
Luminaires on C16A fuse
102
Inrush current / Inrush current duration
0.09 A / 60000 µs
Power factor
0.99

Lighting technology:

Colour temperature
4,000 K
Rated luminous flux
1,950 lm
Glare evaluation UGR (4H 8H) 1
29.3
Beam angle Down 1
112° / 111°
Beam angle combined Up 1
0°

Approbations:

ULOR
2.1 %
CIE Flux Code / CEN Flux Code
52 88 99 98 87
Type of protection
IP 66
Protection class
I
Filament test
960°C - 30 seconds
Impact resistance
IK06 (1 Joule)
Safety marks
F-mark
Ambient temperature min.
-20 °C
Ambient temperature max.
40 °C
Conformity mark
CE, EAC
Energieeffizienzklasse 2019/2015
E
Non-maintained power mode
Umgebungstemperatur /
temperature ambiente
=> -20 °C ... + 40 °C

Lamps:

Lamp
LED
Socket
Colour temperature
4000K
Colour rendering index (CRI)
83
Colour tolerance
3
Rated life
50000 h (L80/B10)
Photobiological safety according to EN 62471
Risk group 1

Dimensions:

Length L
120 mm
Width B
120 mm
Height H
1,100 mm
Weight
6.08 kg
Drawing

Light Calculator

The Online Light Calculator's purpose is a quick calculation and the results may not be perfectly accurate.

Maintenance factor: 0,8

Accessories

982103.010 982103.010 L 120, B 120, H 401 Luminaire tube 120 x 120 mm
