901806.004

Pascala Square

901806.004

  • 901806.002.76
  • 901806.002
  • 901806.004.1.76
  • 901806.004
  • 901806.002.1.76
  • 901806.002.1
  • 901806.004.76
  • 901806.004.1
Red DotiF Award
Series

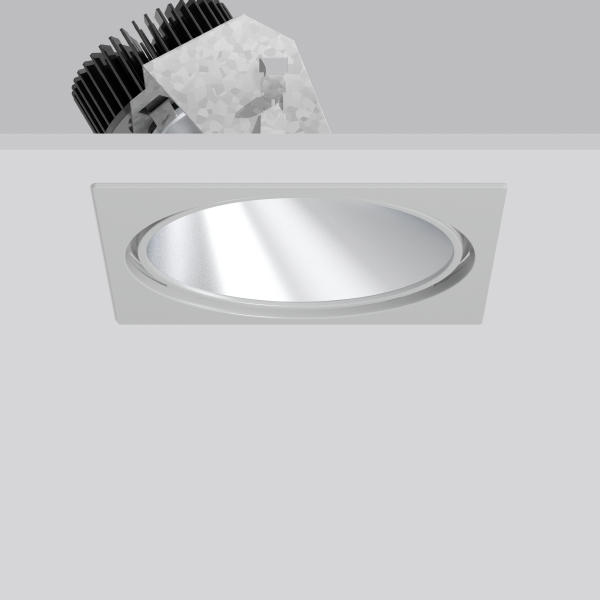

Pascala Square
Type of Installation
Recessed ceiling mounting
Colour
silver metallic
European Article number EAN
4051859918615

High quality recessed downlight.. Mounting bracket: galvanised sheet steel. Inner ring and square cover plate: die-cast aluminium. Brilliantly luminous corona at the light-emitting surfaces thanks to use of a specially designed cast aluminium ring as a reflector closure.. Reflector material: MIRO-SILVER® with 98 percent total light reflection. Patented round design shaped like a truncated cone. MultiLumen: 16 different luminous fluxes can be set on site in approx. 200 lm steps using DIP switches on the separate converter. Best colour rendering index Ra>90. Installation without tools thanks to spring fastening system. Suitable for through-wiring with separately available accessories. Through-wiring box (5 pole) available as accessory.

Technical Specifications

Electrical:

System power
11 W
Luminaire efficacy
145 lm/W
System power 2
19 W
Luminous efficiency 2
132 lm/W
System power 3
26 W
Luminous efficiency 3
129 lm/W
System power 4
39 W
Luminous efficiency 4
122 lm/W
Control gear
Converter
Voltage
220 - 240 V / 50 - 60 Hz
Luminaires on B10A fuse
31
Luminaires on B16A fuse
50
Luminaires on C10A fuse
52
Luminaires on C16A fuse
85
Inrush current / Inrush current duration
5 A / 50 µs
Total harmonic distortion
10 %
Power factor
0.95

Lighting technology:

Colour temperature
3,000 K
Rated luminous flux
1,600 lm
Glare evaluation UGR (4H 8H) 1
27.9
Beam angle Down 1
50° / 31° / 0° / 31°
Beam angle combined Up 1
0°
Colour temperature 2
3,000 K
Rated luminous flux 2
2,500 lm
Glare evaluation UGR (4H 8H) 2
29.5
Colour temperature 3
3,000 K
Beam angle Down 2
50° / 31° / 0° / 31°
Beam angle combined Up 2
0°
Rated luminous flux 3
3,350 lm
Glare evaluation UGR (4H 8H) 3
30.5
Colour temperature 4
3,000 K
Beam angle Down 3
50° / 31° / 0° / 31°
Beam angle combined Up 3
0°
Rated luminous flux 4
4,750 lm
Glare evaluation UGR (4H 8H) 4
31.7
Beam angle Down 4
50° / 31° / 0° / 31°
Beam angle combined Up 4
0°

Approbations:

CIE Flux Code / CEN Flux Code
74 99 100 100 100
Type of protection
IP 20
Protection class
II
Filament test
850°C - 30 seconds
Impact resistance
IK03 (0,35 Joule)
Safety marks
Do not cover the recessed luminaire!, F-mark
Ambient temperature min.
-25 °C
Ambient temperature max.
35 °C
Conformity mark
CE, EAC
Energieeffizienzklasse 2019/2015
E
Non-maintained power mode
Umgebungstemperatur /
temperature ambiente
=> -25 °C ... + 35 °C

Lamps:

Lamp
LED
Socket
Colour temperature
3000K
Colour rendering index (CRI)
92
Colour tolerance
2
Rated life
50000 h (L90/B50)
Photobiological safety according to EN 62471
Risk group 1

Dimensions:

Length L
242 mm
Width B
242 mm
Height H
3 mm
Cut-out diameter DA
228 mm
Recess height HE
175 mm
Luminaire: recess height HEL
172 mm
Ceiling thickness S
6-35 mm
Weight
1.2 kg
Drawing

Downloads

Datasheets

Declaration of Conformity

Operation Manuals

BIM / CAD

DIALux

RELUX

Luminous intensity distribution

Bidding texts

Light Calculator

The Online Light Calculator's purpose is a quick calculation and the results may not be perfectly accurate.

Reflection rate: 70 / 50 / 20

Accessories

982703.002 982703.002 L 98, B 55, H 28 5 pole, cable cross-sections of up to 5 x 1.5 mm² or 3 x 2.5 mm² possible.
