312398.002.1.19

Sidelite ECO

312398.002.1.19

  • 312398.002.1.19
  • 312398.0045.1.19
Designpreis Deutschland
Series
Sidelite ECO
Type of Installation
free-standing
Colour
white
European Article number EAN
4051859371274

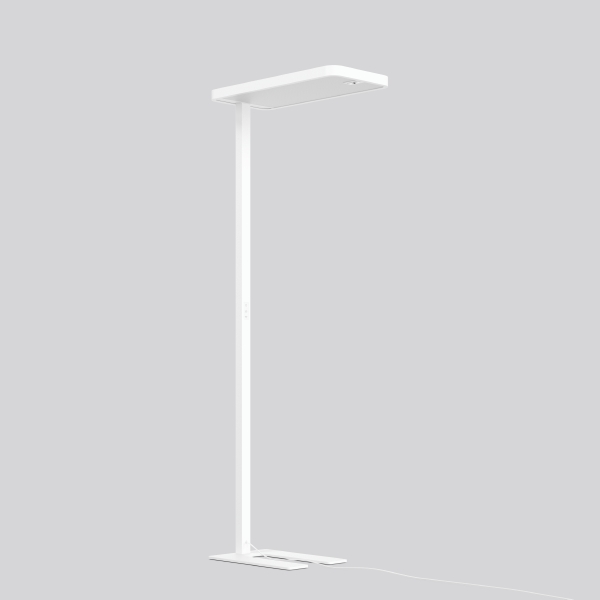

LED free-standing luminaires for single and double workplaces with flat luminaire head. Flat steel base plate for high stability and space-saving positioning with office furniture. Top and column made of aluminium. Pushbutton ergonomically integrated in the luminaire column. Luminaire powder coated. Luminaire top (L 750 x W 350 x H 40 mm). Base plate (350 x 500 mm) with opening (115 mm). Lightguide and diffuser made of non-yellowing plastic (PMMA). Direct 40%, indirect 60% light emission. Direct light control using plastic diffuser with fine microstructure. Indirect light control via opal plastic diffuser. Luminaire switchable/dimmable separately. Version with intelligent presence control and brightness sensors. Integral driver located inside the column. With 2 m connection cable including safety plug (Schuko). Ideal for office areas (UGR ≤ 19) and environments with computer screens in accordance with EN 12464-1.

Technical Specifications

Electrical:

System power
93 W
Luminaire efficacy
107 lm/W
Control gear
Sensor converter
Voltage
220 - 240 V / 50 - 60 Hz
Luminaires on B10A fuse
5
Luminaires on B16A fuse
8
Luminaires on C10A fuse
8
Luminaires on C16A fuse
16
Inrush current / Inrush current duration
51 A / 238 µs
Total harmonic distortion
5 %
Power factor
0.99

Lighting technology:

Colour temperature
4,000 K
Rated luminous flux
9,900 lm
Glare evaluation UGR (4H 8H) 1
14.7
Beam angle Down 1
45° / 45° / 45° / 45°
Beam angle combined Up 1
55° / 53° / 55° / 53°

Approbations:

ULOR
56.8 %
CIE Flux Code / CEN Flux Code
63 89 97 43 100
Type of protection
IP 20
Protection class
I
Filament test
650°C - 30 seconds
Impact resistance
IK02 (0,20 Joule)
Safety marks
F-mark
Conformity mark
CE, EAC
Energieeffizienzklasse 2019/2015
D

Lamps:

Lamp
LED
Socket
Colour temperature
4000K
Colour rendering index (CRI)
80
Colour tolerance
3
Rated life
40000 h (L80/B10)
Photobiological safety according to EN 62471
Risk group 1
Light source
LED
Socket lamp2
Without base
Colour temperature
4000K
Lifetime of lamp 2 combined
(L80/B10)

Dimensions:

Length L
750 mm
Width B
350 mm
Height H
2,000 mm
Weight
19 kg
