672369.002.07

Sidelite ECO

672369.002.07

Series
Sidelite ECO
Type of Installation
Recessed ceiling
Colour
white
European Article number EAN
4051859373575

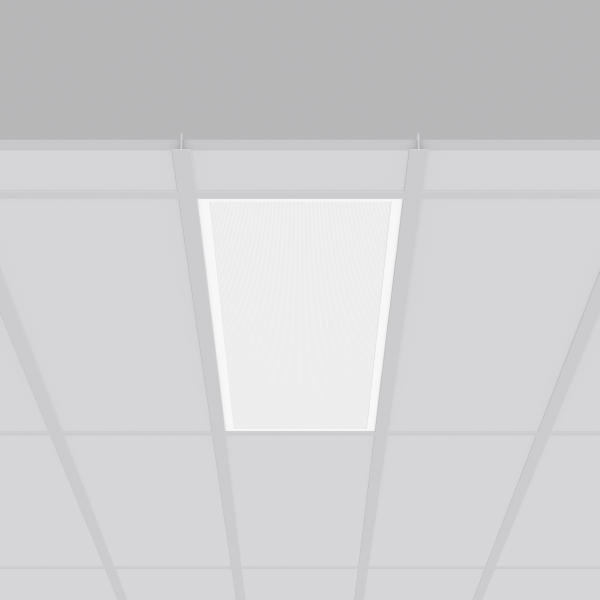

Highly economical recessed luminaire with progressive LED technology. For escape route illumination. Frame made of aluminium, powder-coated. Diffuser plastic microprismatic. Lightguide and diffuser made of non-yellowing plastic (PMMA). Lateral light emission (RZB SIDELITE® technology) for homogeneous light distribution. External driver. Self-contained system with automatic self-test and feedback via DALI bus, only to RZB DALI monitoring system. External driver with simple plug-in locking system. Extended connection cable (1.90 m).

Technical Specifications

Electrical:

System power
29 W
Luminaire efficacy
110 lm/W
Control gear
Converter
Voltage
220 - 240 V / 50 - 60 Hz
Luminaires on B10A fuse
15
Luminaires on B16A fuse
25
Inrush current / Inrush current duration
16 A / 100 µs
Total harmonic distortion
10 %
Power factor
0.98

Lighting technology:

Colour temperature
3,000 K
Rated luminous flux
3,200 lm
Glare evaluation UGR (4H 8H) 1
18.3
Beam angle Down 1
96° / 92°
Beam angle combined Up 1
0°

Approbations:

CIE Flux Code / CEN Flux Code
59 87 97 100 100
Type of protection
IP 40
Note: Type of Protection
IP 20, IP 40 on room side
Protection class
I
Impact resistance
IK03 (0,35 Joule)
Safety marks
Do not cover the recessed luminaire!, F-mark
Ambient temperature min.
5 °C
Ambient temperature max.
30 °C
Conformity mark
CE, EAC
Energieeffizienzklasse 2019/2015
D
Maintained power
=> 5 °C ... + 30 °C
Non-maintained power mode
=> 5 °C ... + 30 °C

Lamps:

Lamp
LED
Socket
Colour temperature
3000K
Colour rendering index (CRI)
80
Photobiological safety according to EN 62471
Risk group 0

Dimensions:

Length L
1,195 mm
Width B
295 mm
Recess height HE
160 mm
Luminaire: recess height HEL
40 mm
Weight
4.4 kg
Drawing

Safety lighting:

Emergency luminaire
Self-contained system
Battery Option
NiMh
Operating mode
Maintained power mode/Non-maintained power mode
Monitoring
DALI-Sibe
Luminaire flux Mains/Emergency
3200 / 220 lm
Duration time
8 h

Light Calculator

The Online Light Calculator's purpose is a quick calculation and the results may not be perfectly accurate.

Maintenance factor: 0,8

Accessories

982106.012 982106.012 L 1224, B 324, H 2, HE 94 for module 1200
981980.012 981980.012 consisting of 4 cylindrical spacers (Ø 30, H 38) | for module 600 / 1200
982190.052 982190.052 L 1202, B 302, H 47 Surface-mounted frame for single-battery luminaires

Standard luminaires

312366.002.790 312366.002.790 equal standard luminaire
