672295.004

CADERO quadra

672295.004

  • 672295.0031
  • 672295.004.1
  • 672295.0031.1
  • 672295.004
Series
CADERO quadra
Type of Installation
Ceiling mounting, Wall (surface)
Colour
silver metallic
European Article number EAN
4051859225034

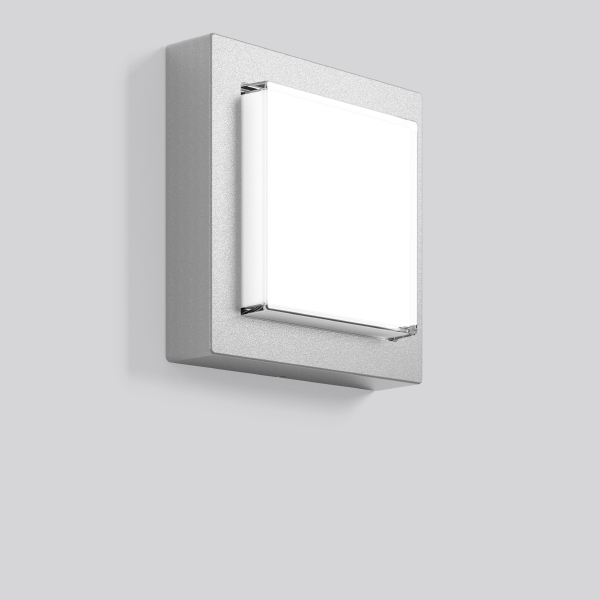

Decorative surface-mounted luminaire for outdoor use. For escape route illumination. Base and housing made of corrosion resistant pressure die-cast aluminium, seawater resistant powder-coated. With membrane valve as a standard to avoid condensed water. Clear crystal glass, painted inside, with fixing device. The converter is compatible with DC, making it ideal for central battery systems.

Technical Specifications

Electrical:

System power
12 W
Luminaire efficacy
53 lm/W
Control gear
Converter
Voltage
220 - 240 V / 0 Hz, 50 Hz, 60 Hz
System power, emergency
3.4 W

Lighting technology:

Colour temperature
3,000 K
Rated luminous flux
630 lm
Glare evaluation UGR (4H 8H) 1
22.3
Beam angle Down 1
128°
Beam angle combined Up 1
180°

Approbations:

ULOR
5.2
CIE Flux Code / CEN Flux Code
41 71 91 95 100
Type of protection
IP 65
Protection class
I
Filament test
960°C - 30 seconds
Impact resistance
IK05 (0,70 Joule)
Safety marks
F-mark
Ambient temperature min.
-20 °C
Ambient temperature max.
40 °C
Conformity mark
CE, EAC
Energieeffizienzklasse 2019/2015
E
Maintained power
=> -20 °C ... + 40 °C
Non-maintained power mode
=> -20 °C ... + 40 °C

Lamps:

Lamp
LED
Socket
Colour temperature
3000K
Colour rendering index (CRI)
80
Colour tolerance
3
Photobiological safety according to EN 62471
Risk group 1

Dimensions:

Length L
257 mm
Width B
257 mm
Height H
81 mm
Weight
2.8 kg
Drawing

Safety lighting:

Emergency luminaire
Central battery system
Battery Option
without battery
Operating mode
Maintained power mode/Non-maintained power mode
Monitoring
Power circuit monitored
Luminaire flux Mains/Emergency
630 / 160 lm

Light Calculator

The Online Light Calculator's purpose is a quick calculation and the results may not be perfectly accurate.

Maintenance factor: 0,8

Spareparts

981210.002 981210.002 Replacement glasses L 232, B 232, H 35

Standard luminaires

581637.004 581637.004 equal standard luminaire
